Honeywell Analog Output Module
Brand: Honeywell
Model: Analog Output Module
Part: 51304164-100 REV C
The Honeywell Analog Output Module (51304164-100 REV C) is a high-performance analog signal interface designed for industrial automation and control systems. This module is typically used within distributed control systems (DCS) to convert digital signals into analog voltage or current outputs for controlling actuators, valves, and other analog field devices.

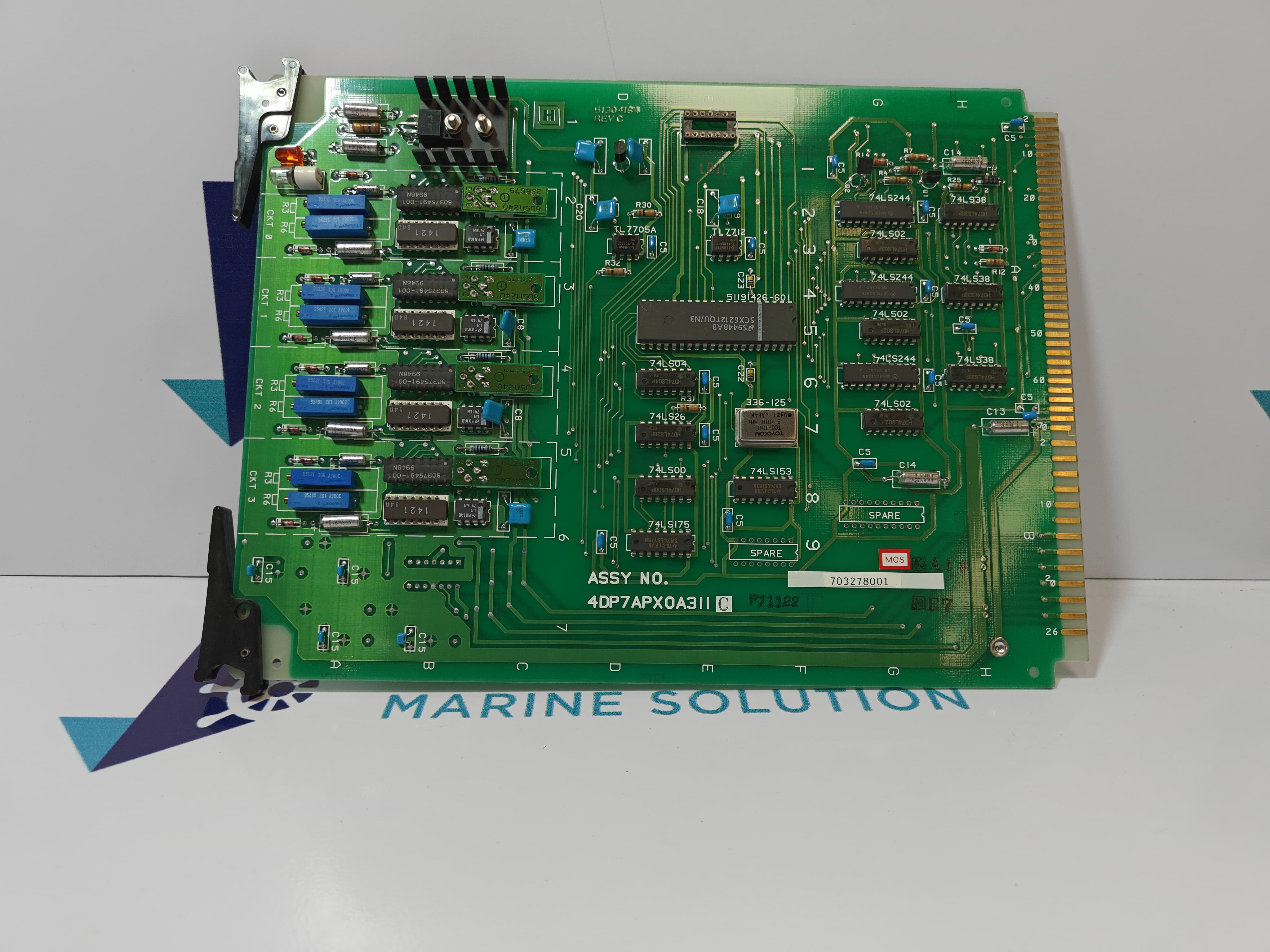

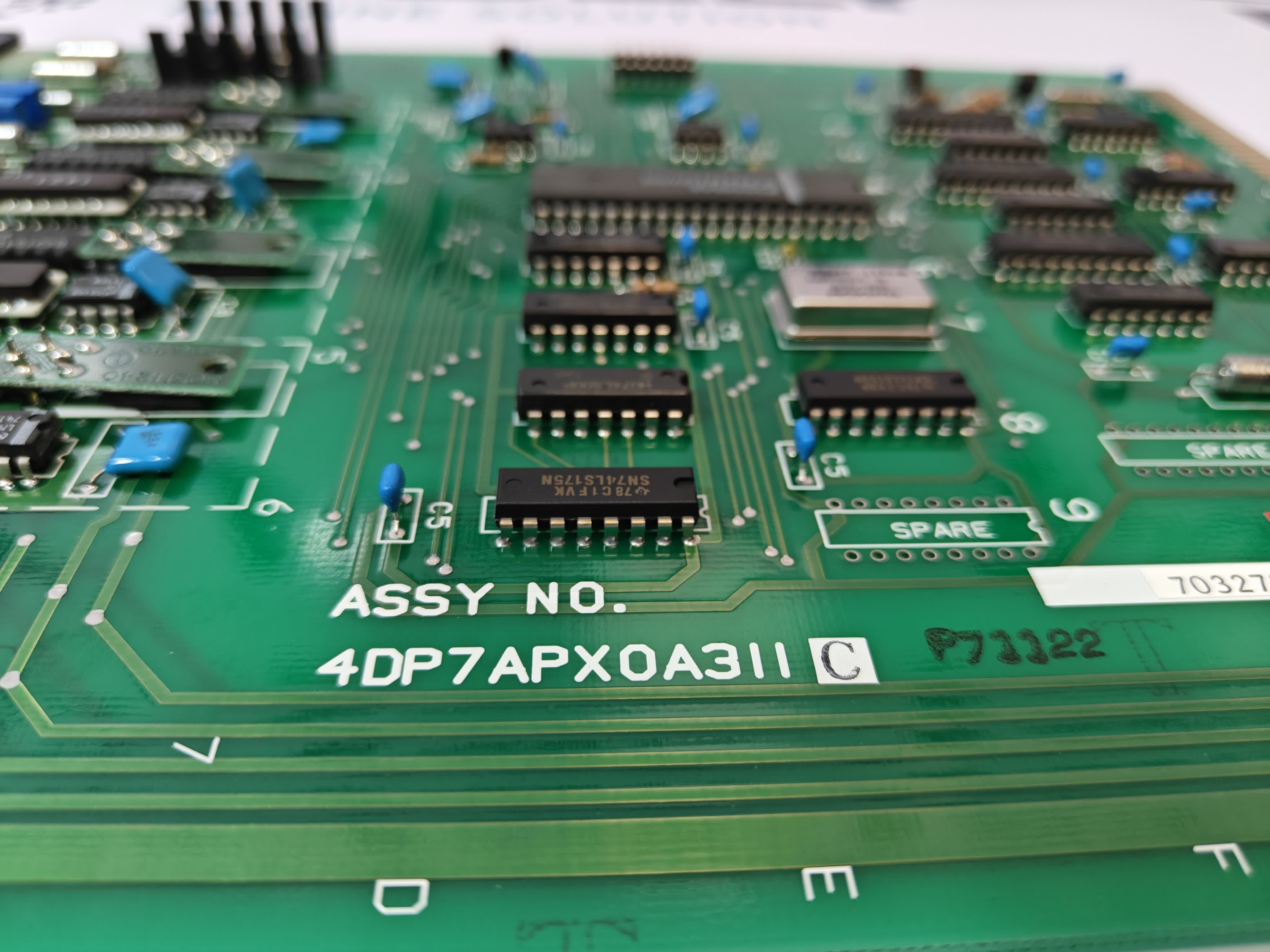

This particular board, featuring the assembly number 4DP7APX0A3I1, showcases Honeywell’s robust engineering and reliability for demanding industrial environments. It is suitable for use in critical systems where precise and reliable analog output is necessary.
Key Features
8-Channel Analog Output Support:
Designed to support multiple analog output channels for field communication with process control devices.
High-Quality PCB Design:
The board features a high-quality layout with precision resistors, ICs, and communication drivers to ensure signal integrity and minimal noise.
Integrated Signal Conditioning:
Includes onboard filtering and signal conditioning to provide stable analog output signals (typically 0–10 V or 4–20 mA depending on configuration).
Modular and Field-Replaceable:
The board is designed as a plug-in module, which simplifies maintenance and system upgrades. It fits seamlessly into Honeywell control racks or enclosures.
Optical Isolation and Protection:
Provides electrical isolation between field and control signals to protect against transients and ensure safety.
MOS Logic Circuits:
Uses high-speed logic chips like 74LS244, 74LS538, and 74LS02 for reliable signal processing and multiplexing.
Technical Specifications (Typical for Honeywell Analog Modules)
| Attribute | Details |
|---|---|
| Output Type | Analog (Voltage/Current, configurable) |
| Channels | Up to 8 outputs |
| Mounting | Rack-mounted PCB |
| Signal Range | Typically 0–10 V or 4–20 mA |
| Power Requirements | Supplied through backplane |
| Board Layout | Conformal coated, clearly labeled ICs and jumpers |
| Protection | Surge and transient protection on outputs |
| Compatibility | Honeywell DCS and industrial control systems |
Applications
Industrial Process Control
Controls output devices like valves, actuators, and analog meters.
Building Automation
Interfaces with HVAC and other environmental systems.
Marine and Power Systems
Used in shipboard and utility plant control systems.
SCADA and PLC Integration
Acts as an analog output expansion in programmable logic systems.
Physical Characteristics
Board Dimensions: Standard Eurocard PCB (approximate: 6U x 160 mm)

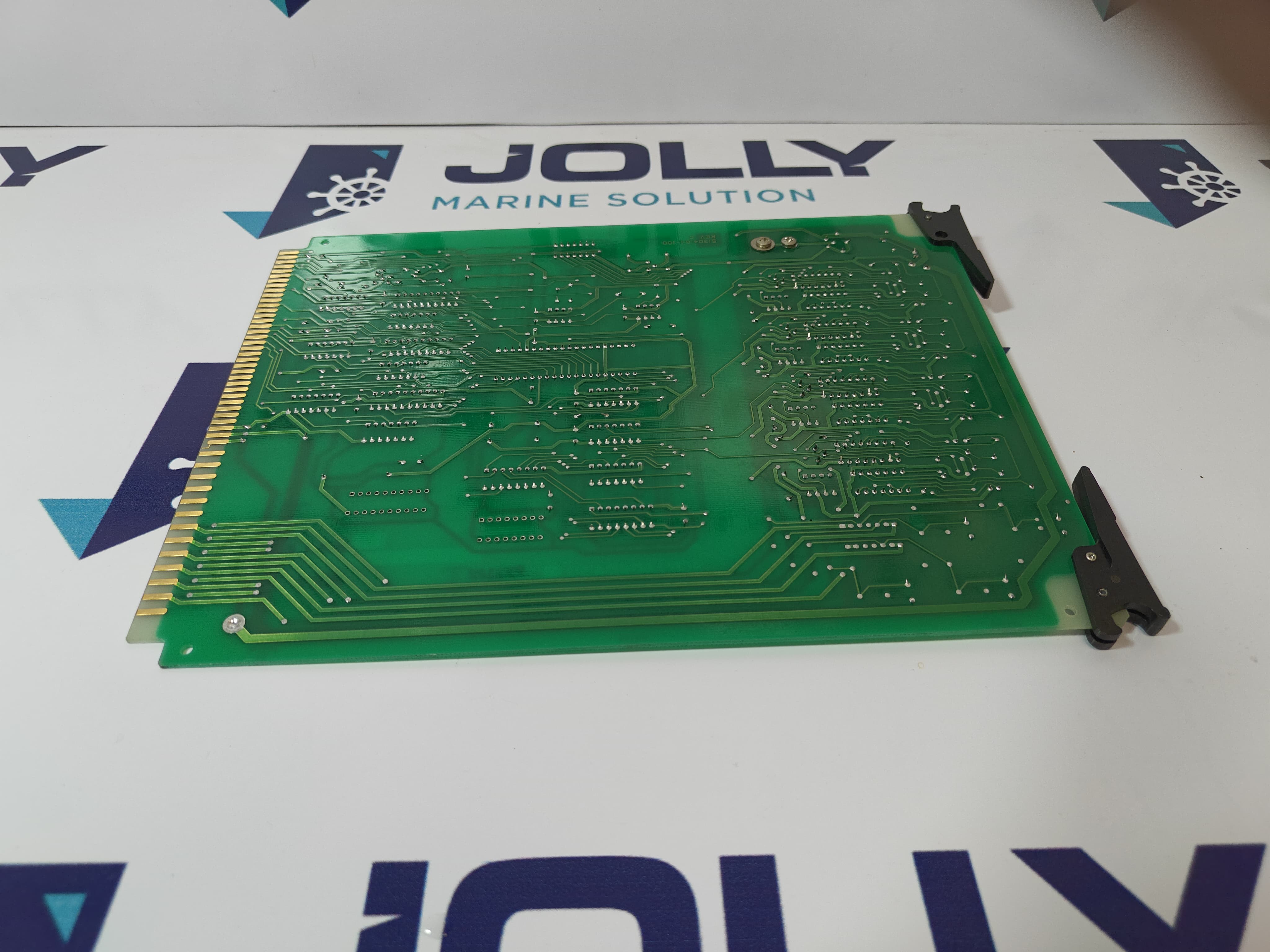

Edge Connector: Gold-plated contacts for reliable insertion into system backplane
Component Placement: Clearly marked ICs and labeled jumpers for ease of service
