The Schneider Electric Power Logic HU250 is an RS232/RS485 communication interface box that facilitates the integration of Schneider Electric's power monitoring and control devices into automation systems. It serves as a bridge, enabling devices such as meters, sensors, and other power management equipment to communicate with control systems over standard communication protocols like RS232 and RS485.This interface box plays a critical role in enabling real-time monitoring, control, and data exchange between power management systems, ensuring efficient and reliable operation in various industrial setups.

Key Features:

Communication Ports:

RS232 and RS485: The HU250 supports both RS232 and RS485 serial communication, offering flexibility for various industrial and automation applications.

Remote Monitoring: Enables remote communication between Schneider Electric power monitoring equipment and other automation systems for data logging, control, and analysis.

Durable Construction: The interface box is built to withstand the rigors of industrial environments, offering both reliability and long-term durability.

Compact Design: Designed for easy installation, the HU250 is space-efficient, ensuring it fits into most system setups with ease.

Easy Integration: Facilitates simple connectivity with Schneider Electric’s range of power meters, making it easier to integrate into both new and existing systems.

Status Indicators: Features LED indicators for quick status checks, ensuring clear visibility of operational status and ease of troubleshooting.

Applications:

Power Monitoring: Ideal for applications that require real-time data from power meters and other Schneider Electric monitoring systems.

Industrial Automation: Suitable for environments that require reliable communication between control systems and monitoring devices.

Building Management Systems (BMS): Helps in managing energy consumption and system efficiency by enabling smooth data exchange in building automation systems.

Technical Specifications:

Communication Protocol: RS232, RS485

Power Supply: Typically powered by the system it connects to.

Dimensions: Compact, space-saving design.

Temperature Range: Suitable for industrial and commercial use, capable of functioning in a range of temperatures (specific values may depend on the product datasheet).

Packaging and Accessories:

Included in the Box:

Schneider Electric PowerLogic HU250 Interface Box

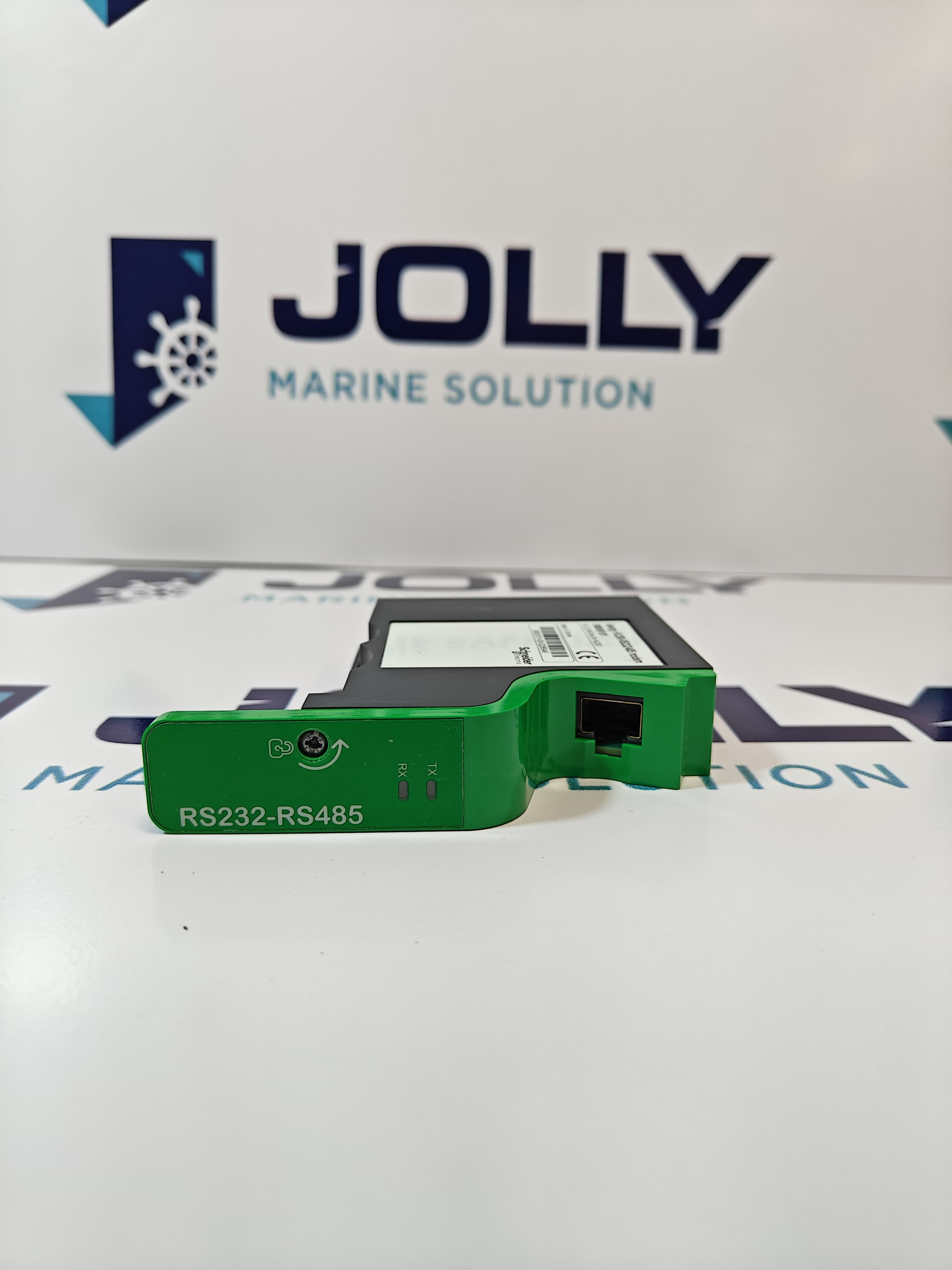

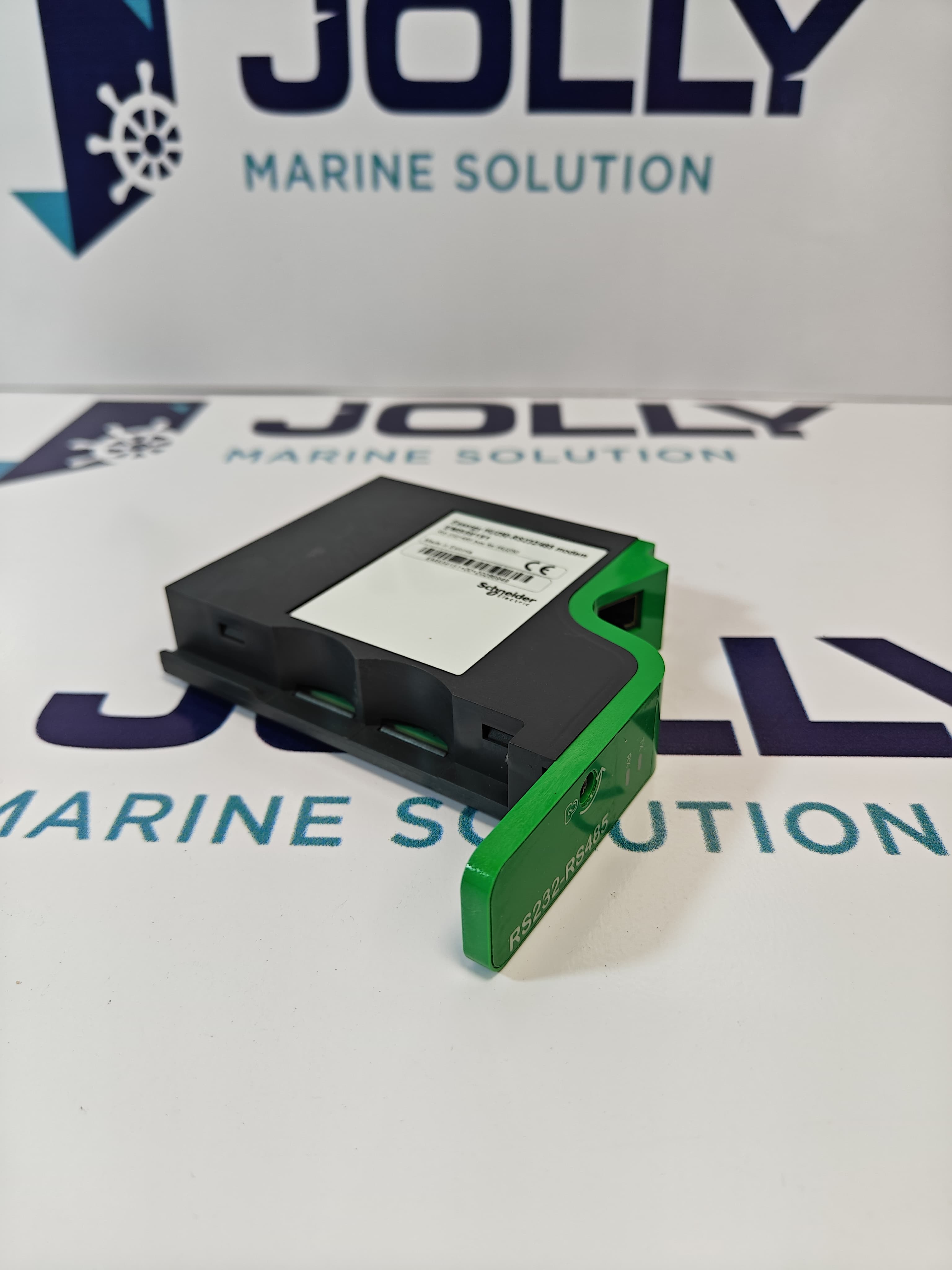

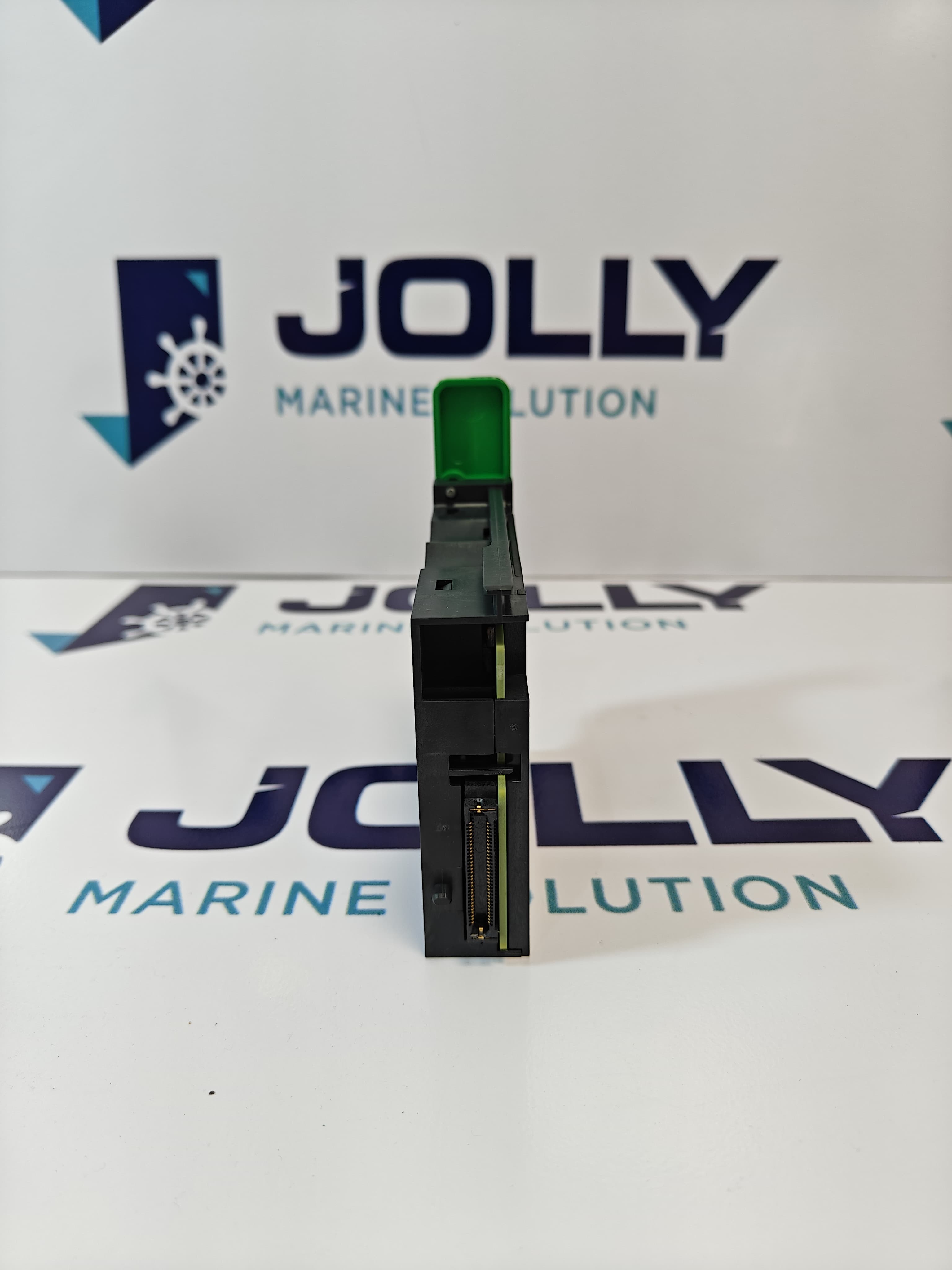

Original Packaging (as seen in the photo)

Documentation and Manuals for installation and configuration.
